Sabit Sistemler
Tüm Ritter Abutment'ları bir sabitleme vidasıyla birlikte verilir. Single Unit ürün yelpazesi geleneksel olarak kademeli protez yüksekliklerini / kademeli diş eti yüksekliklerini / kademeli açıları kapsayacak şekilde üretilmiştir.
Ritter Abutment'lardaki collar ve shoulder tasarımı, kuron ile birleştiğinde ara açılar / yükseklikler telafi edilir ve ağızdaki abutmenta estetik bir şekilde yapıştırılır veya vidalanır.
HHDA HEX Anahtarı Standard & Narrow Platform için aynı abutment sabitleme anahtarı
Titanyum Abutment
Anatomik
|

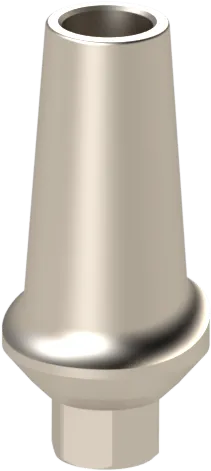

SATA-1 |

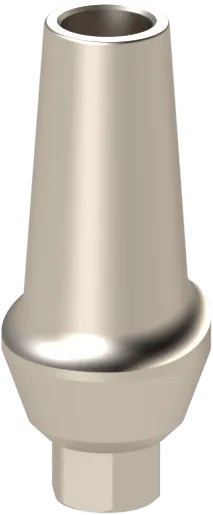

SATA-2 |

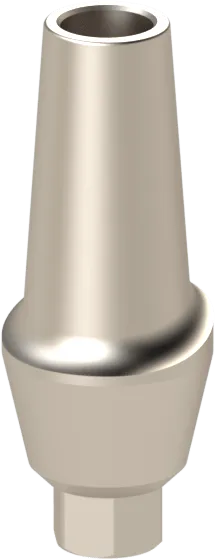

SATA-3 |
|---|---|---|---|

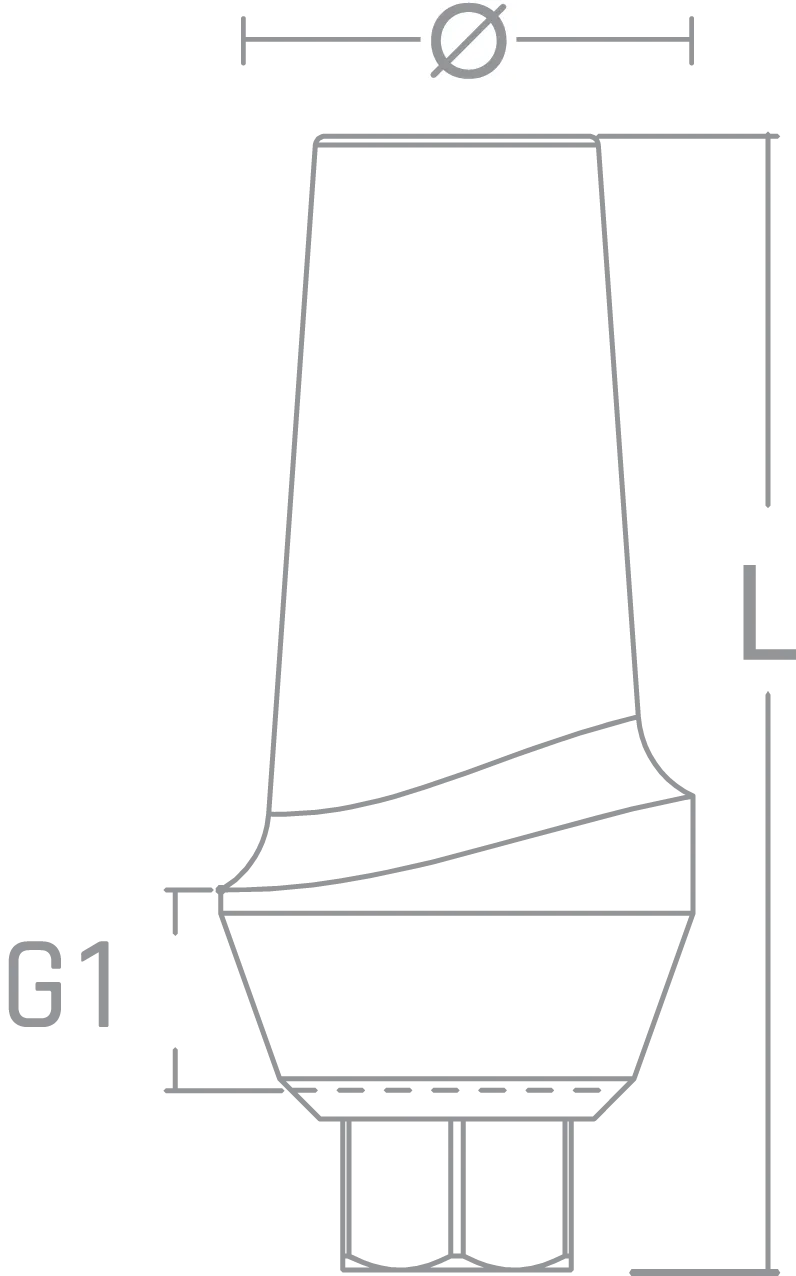

| G1 (mm) | 1 | 2 | 3 |
| L (mm) | 8.9 | 9.9 | 10.9 |
| ø (mm) | 4.5 | 4.5 | 4.5 |
|
|
SATA-1 |
SATA-2 |
SATA-3 |
|---|---|---|---|
| G1 (mm) | 1 | 2 | 3 |
| L (mm) | 8.9 | 9.9 | 10.9 |
| ø (mm) | 4.5 | 4.5 | 4.5 |
|

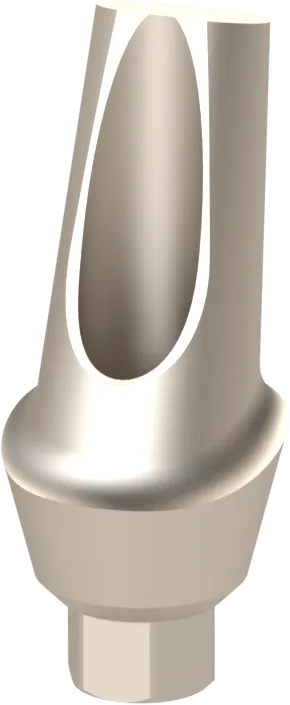

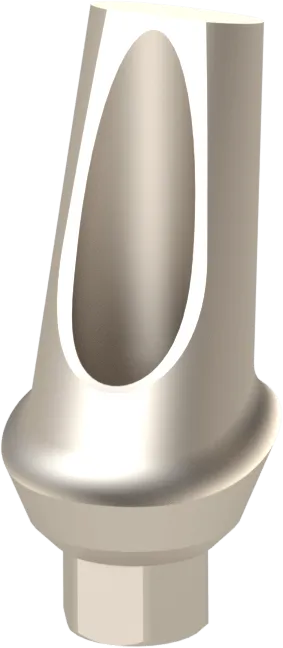

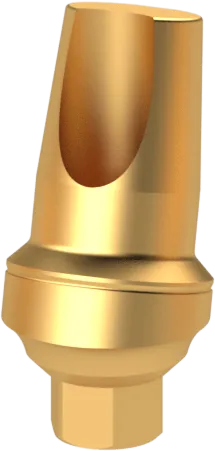

EATA-15-1 |
EATA-15-2 |

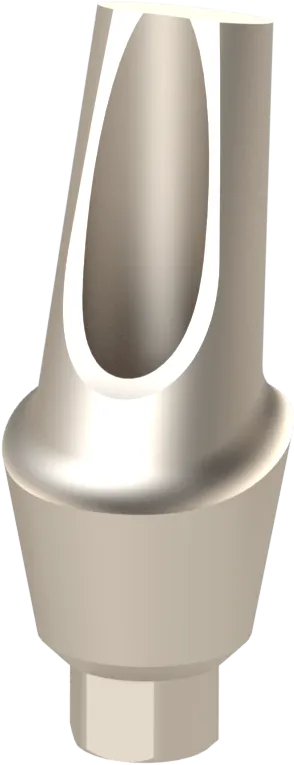

EATA-15-3 |
|---|---|---|---|
| Açı (°) | 15 | 15 | 15 |
| G1 (mm) | 1 | 2 | 3 |
| L (mm) | 9 | 10 | 11 |
|
|
EATA-15-1 |
EATA-15-2 |
EATA-15-3 |
|---|---|---|---|
| Açı (°) | 15 | 15 | 15 |
| G1 (mm) | 1 | 2 | 3 |
| L (mm) | 9 | 10 | 11 |
|
|

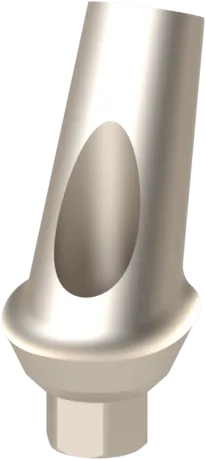

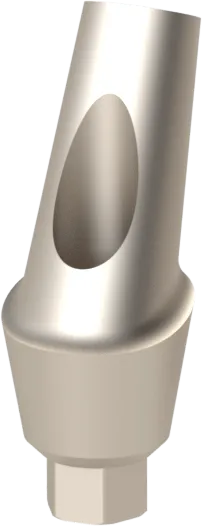

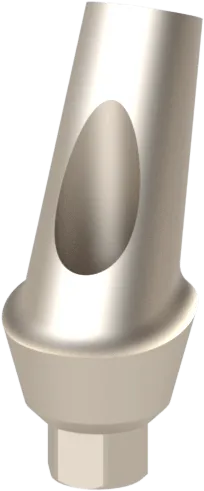

EATA-25-1 |
EATA-25-2 |
EATA-25-3 |
|---|---|---|---|
| Açı (°) | 25 | 25 | 25 |
| G1 (mm) | 1 | 2 | 3 |
| L (mm) | 9 | 10 | 11 |
|
|
EATA-25-1 |
EATA-25-2 |
EATA-25-3 |
|---|---|---|---|
| Açı (°) | 25 | 25 | 25 |
| G1 (mm) | 1 | 2 | 3 |
| L (mm) | 9 | 10 | 11 |
|

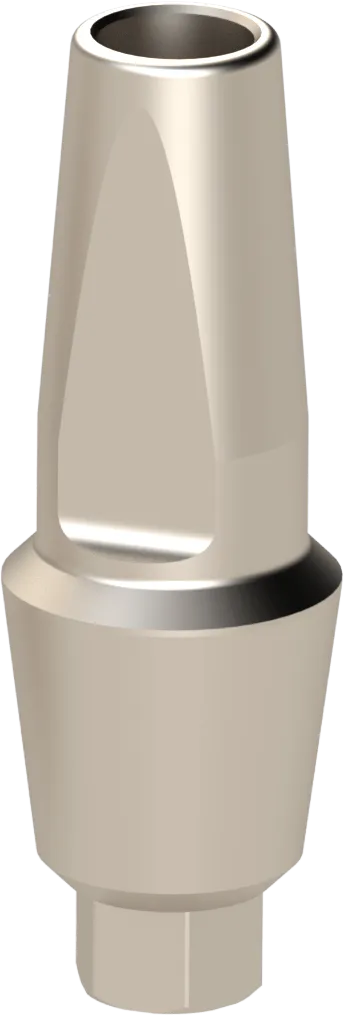

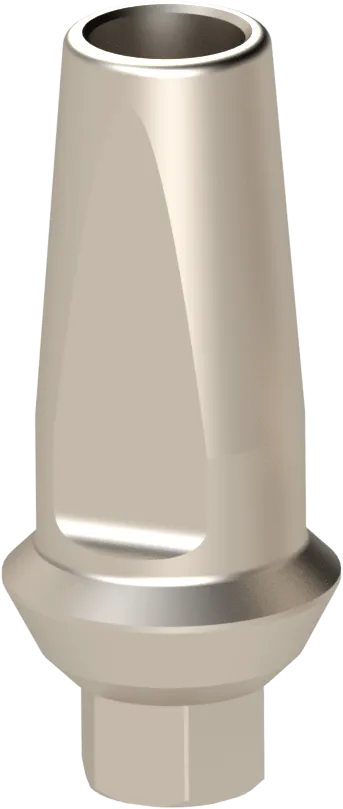

SSTA-1 |

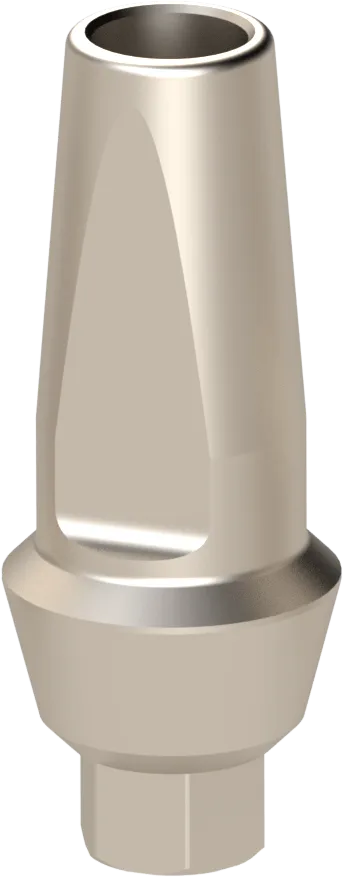

SSTA-2 |
SSTA-3 |
SSTA-4 |
|---|---|---|---|---|
| NARROW |
NL-SSTA-1 |
NL-SSTA-2 |
NL-SSTA-3 |
|

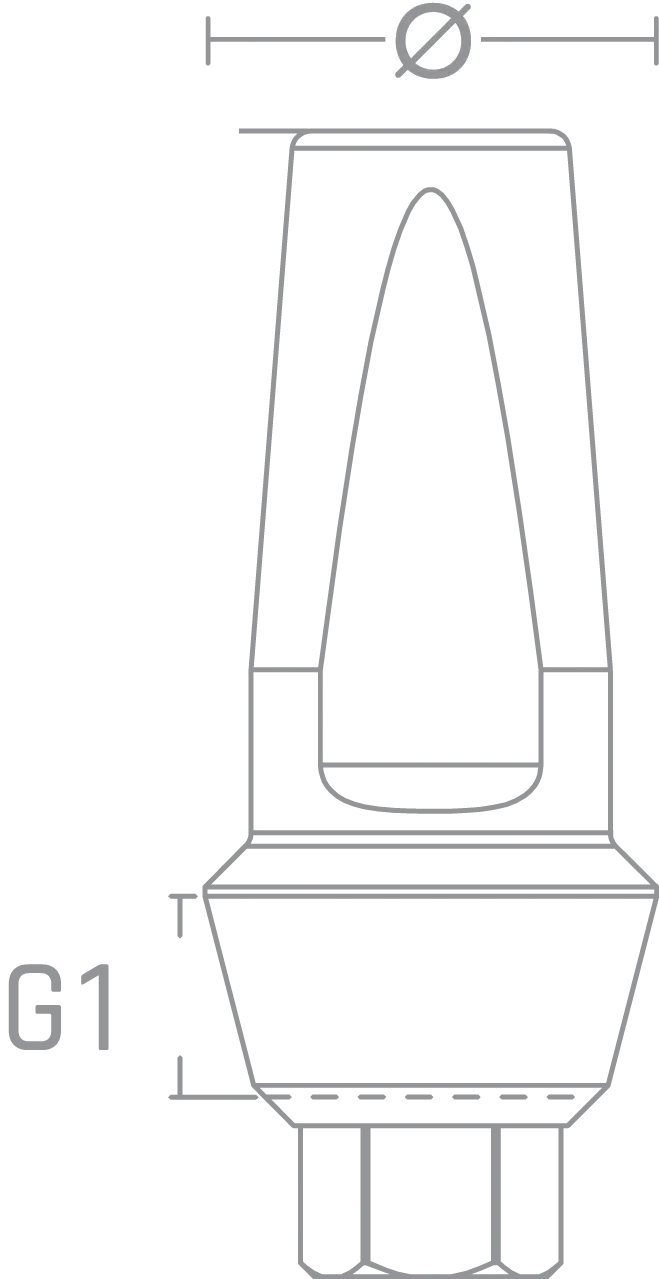

| G1 (mm) | 1 | 2 | 3 | 4 |
| ø (mm) | 4.8 | 4.8 | 4.8 | 4.8 |
|
|
SSTA-1 |
SSTA-2 |
SSTA-3 |
SSTA-4 |
|---|---|---|---|---|
| NARROW |
NL-SSTA-1 |
NL-SSTA-2 |
NL-SSTA-3 |
|
| G1 (mm) | 1 | 2 | 3 | 4 |
| ø (mm) | 4.8 | 4.8 | 4.8 | 4.8 |
|

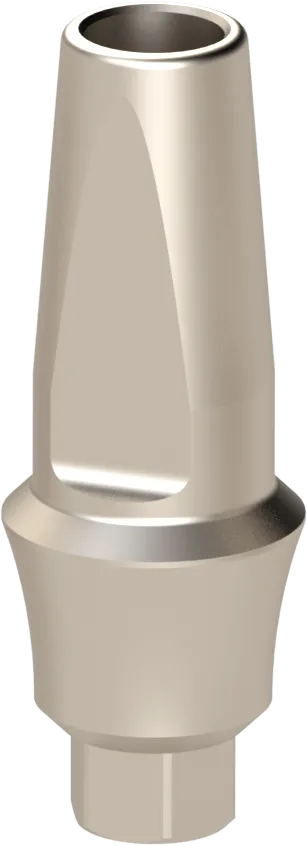

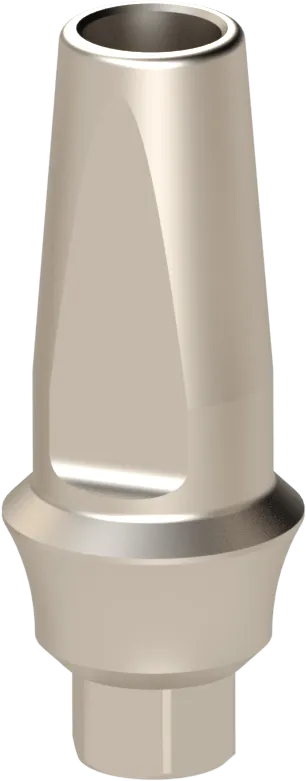

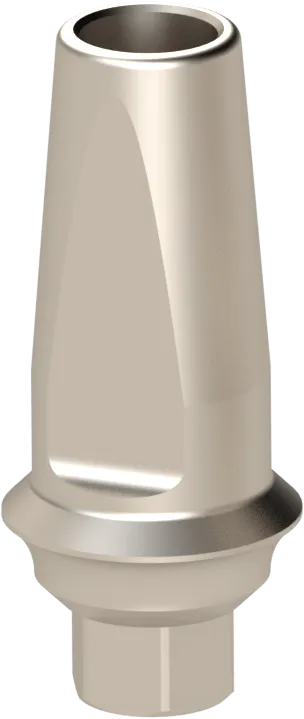

ESPS-1 |
ESPS-2 |
ESPS-3 |
|---|---|---|---|
| G1 (mm) | 1 | 2 | 3 |
| ø (mm) | 4.8 | 4.8 | 4.8 |
|
|
ESPS-1 |
ESPS-2 |
ESPS-3 |
|---|---|---|---|
| G1 (mm) | 1 | 2 | 3 |
| ø (mm) | 4.8 | 4.8 | 4.8 |
Casting/LAB

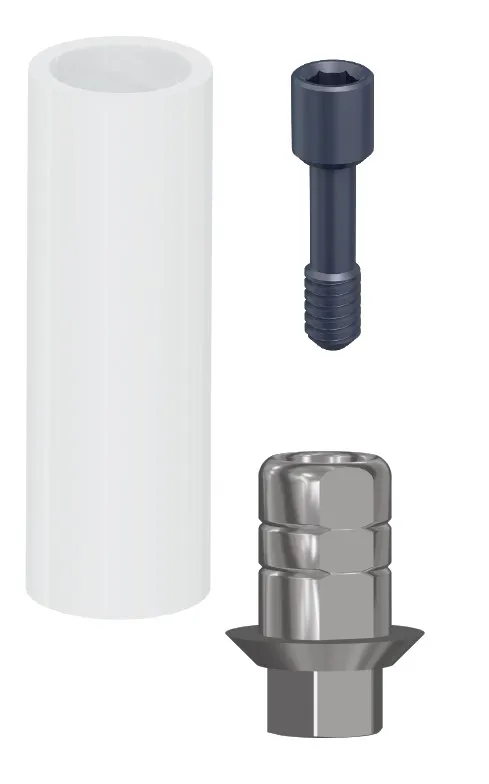

AZA |
AZA-CC |
AZA-L |
AZA-CC-L |

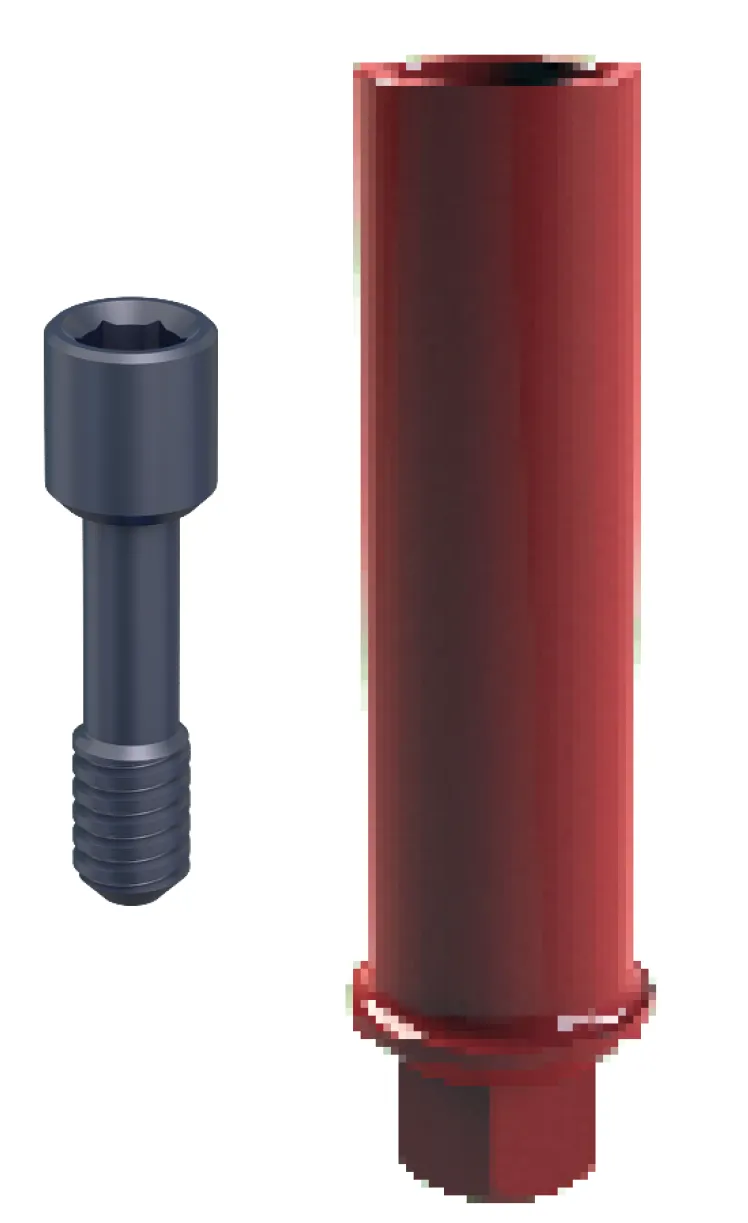

PAC-H |

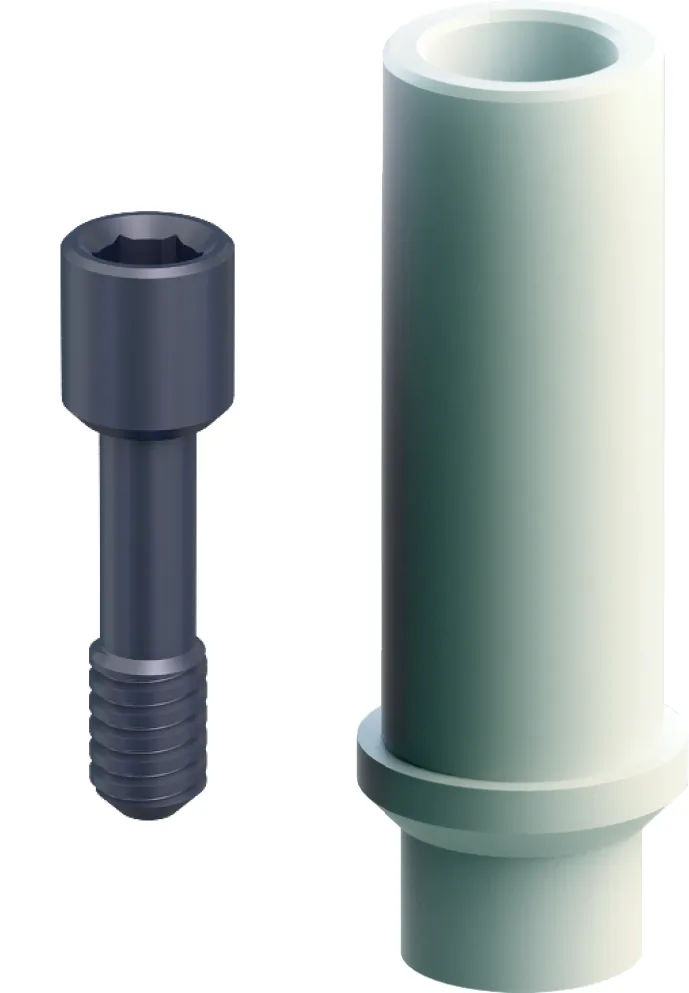

PAC |
|
| NARROW |
NL-AZA |
NL-AZA-CC |
NL-PAC-H |
|||
| BASE | Titanium Base Plastic Sleeve |
Cobalt Chrome Base Plastic Sleeve |
Titanium Base Plastic Sleeve |
Cobalt Chrome Base Plastic Sleeve |
Burn-It Plastic Sleeve | Burn-It Plastic Sleeve |
| Hex | Anti-Rotational | Anti-Rotational | Anti-Rotational | Anti-Rotational | Anti-Rotational | Rotational |
AZA |
AZA-CC |
AZA-L |
AZA-CC-L |
PAC-H |
PAC |
|
| NARROW |
NL-AZA |
NL-AZA-CC |
NL-PAC-H |
|||
| BASE | Titanium Base Plastic Sleeve |
Cobalt Chrome Base Plastic Sleeve |
Titanium Base Plastic Sleeve |
Cobalt Chrome Base Plastic Sleeve |
Burn-It Plastic Sleeve | Burn-It Plastic Sleeve |
| Hex | Anti-Rotational | Anti-Rotational | Anti-Rotational | Anti-Rotational | Anti-Rotational | Rotational |
Pre-milled / Kazınabilir Abutment

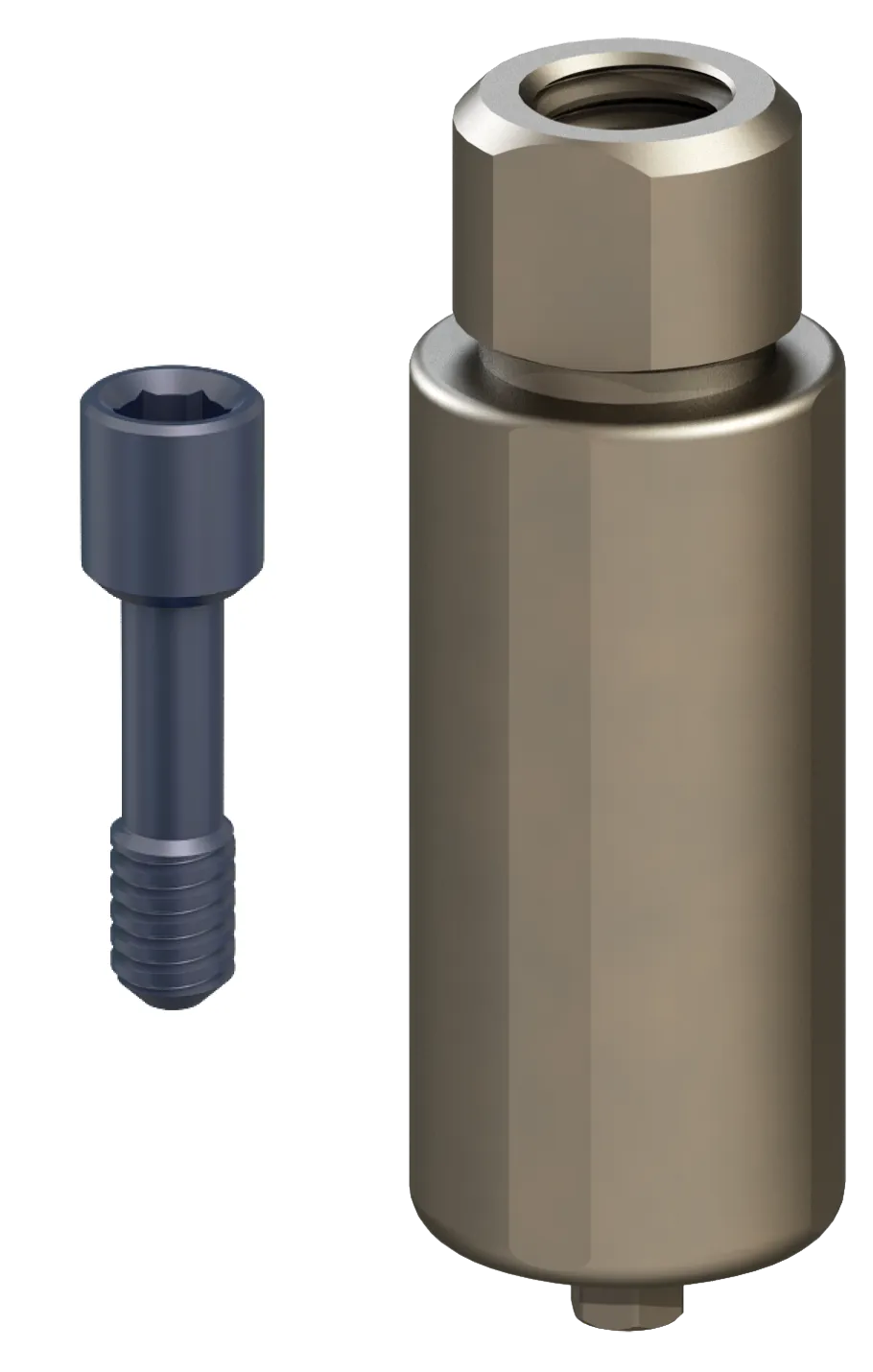

NL-ML-10-23 |
ML-10-23 |
|
| Hex | 2.0 | 2.42 |
Ti-Base Abutment
|

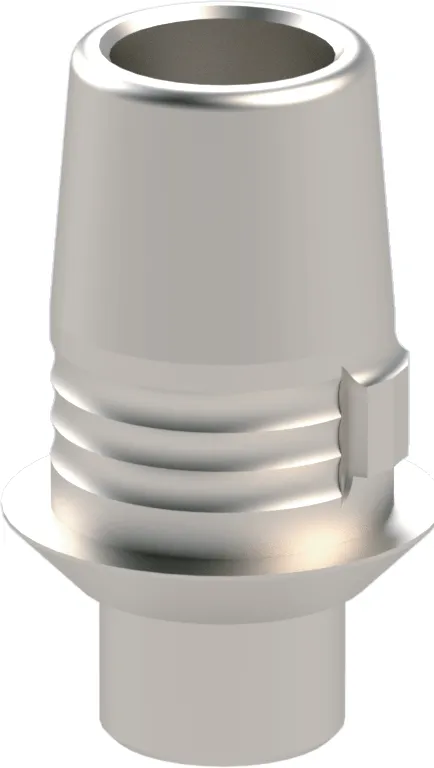

TBC-0.5 |
TBC-1.5 |
TBC-3 |
|---|---|---|---|
| NARROW |
NL-TBC-0.5 |
NL-TBC-1.5 |
NL-TBC-3 |

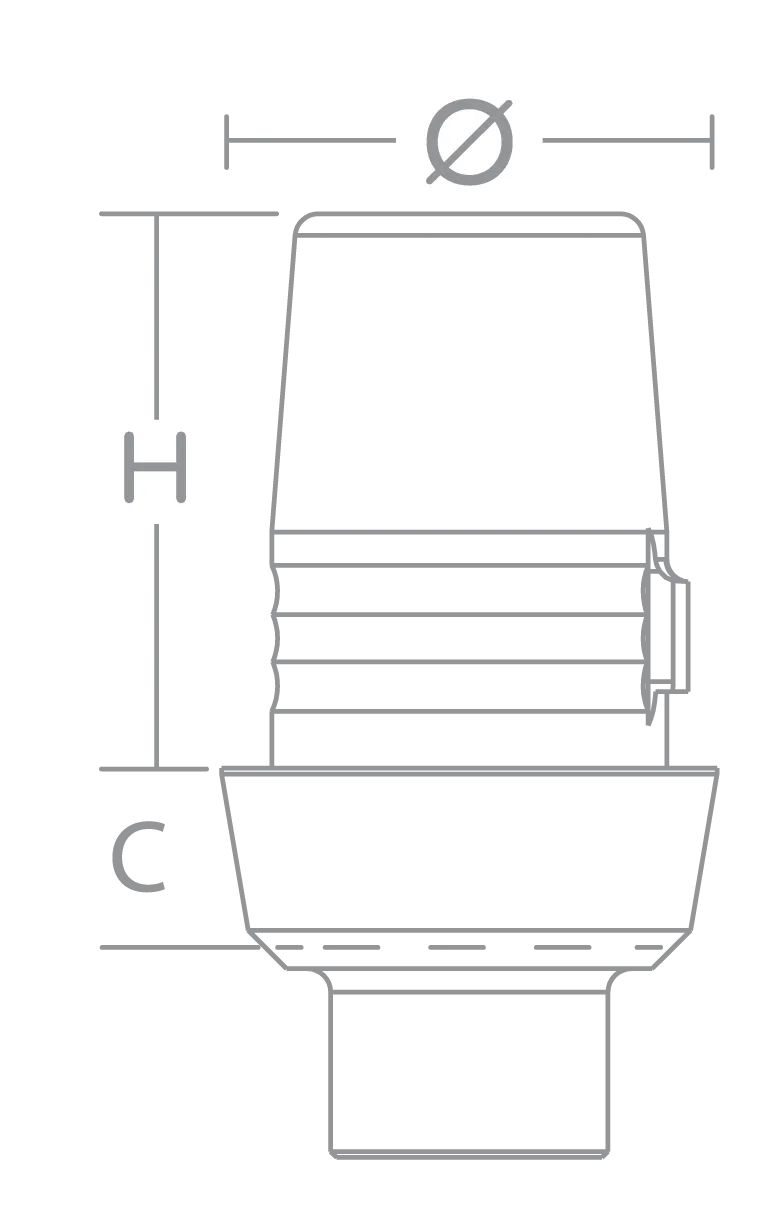

| C (mm) | 0.5 | 1.5 | 3 |
| H (mm) | 4.7 | 4.7 | 4.7 |
| ø (mm) | 4.2 | 4.2 | 4.2 |
| Hex | Anti-Rotational | Anti-Rotational | Anti-Rotational |
|
|
TBC-0.5 |

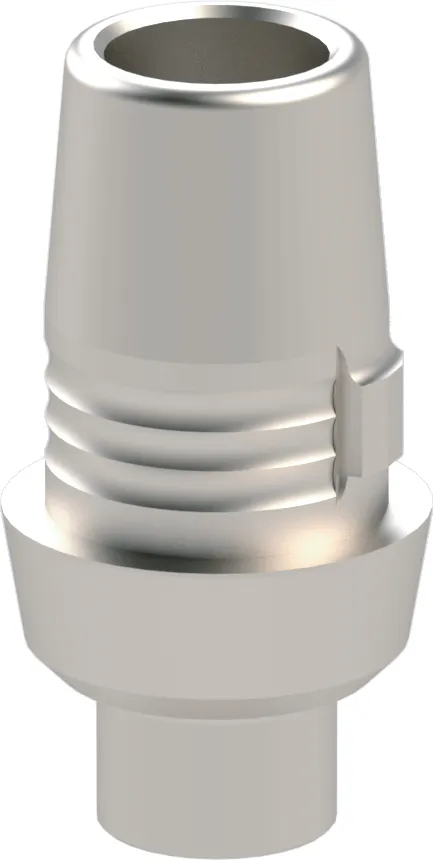

TBC-1.5 |

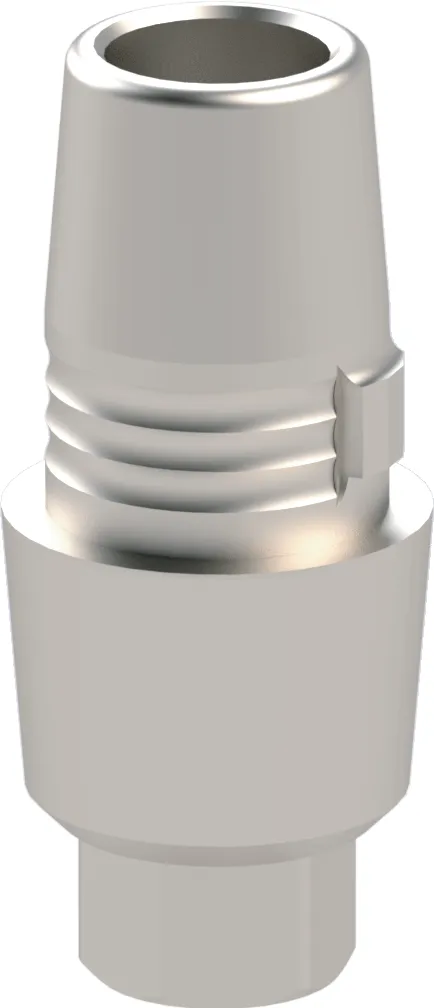

TBC-3 |
|---|---|---|---|
| NARROW |
NL-TBC-0.5 |
NL-TBC-1.5 |
NL-TBC-3 |
| C (mm) | 0.5 | 1.5 | 3 |
| H (mm) | 4.7 | 4.7 | 4.7 |
| ø (mm) | 4.2 | 4.2 | 4.2 |
| Hex | Anti-Rotational | Anti-Rotational | Anti-Rotational |
|
|

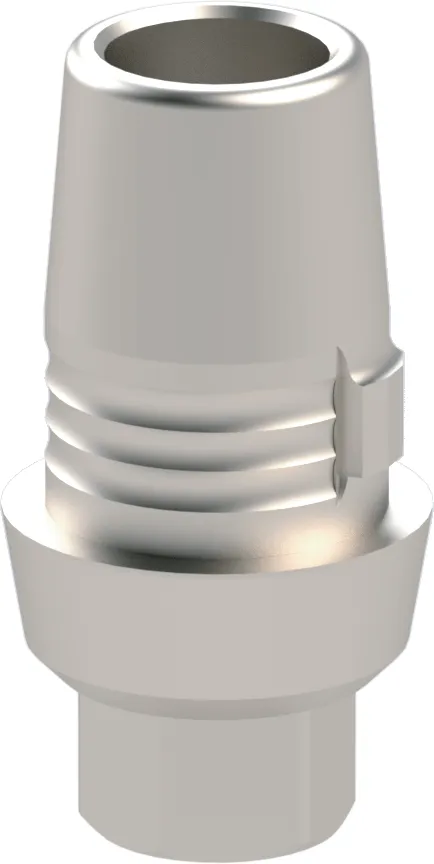

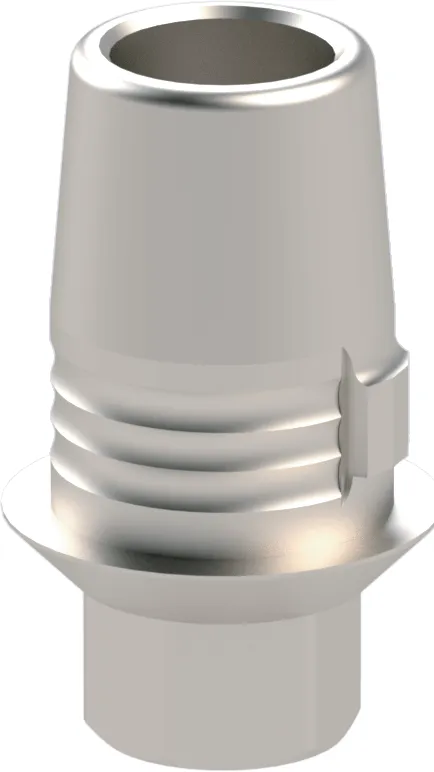

TBC-0.5R |
TBC-1.5R |
|---|---|---|
| NARROW |
NL-TBC-0.5R |
NL-TBC-1.5R |
| C (mm) | 0.5 | 1.5 |
| H (mm) | 4.7 | 4.7 |
| ø (mm) | 4.2 | 4.2 |
| Hex | Rotational | Rotational |
|
|
TBC-0.5R |
TBC-1.5R |
|---|---|---|
| NARROW |
NL-TBC-0.5R |
NL-TBC-1.5R |
| C (mm) | 0.5 | 1.5 |
| H (mm) | 4.7 | 4.7 |
| ø (mm) | 4.2 | 4.2 |
| Hex | Rotational | Rotational |
